CARE AND FEEDING OF L-TYPE 50 RD. THOMPSON Drum

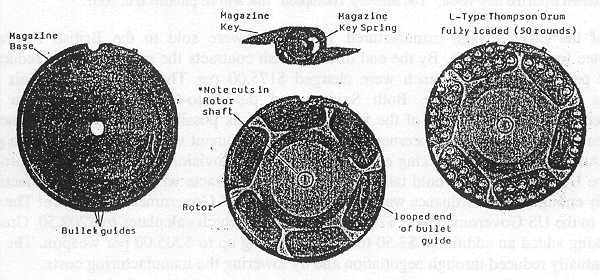

(1) Lift Magazine Key Spring and slide Magazine Key from Magazine cover. Remove Magazine Cover.

(2) Place 230 gr. ball ammo base down starting at 12 o'clock position in Magazine Base loading counter-clockwise. Fill each of the ten sections of Rotor with five rounds each until fully loaded.

WARNING: Where looped end of bullet guide ends do not. load in the area as jams will occur when Rotor turns.

(3) When L-Type Thompson Drum is fully loaded (50 rounds) replace cover and Magazine Key. *Note cuts in Rotor shaft for Magazine Key - exert downward pressure on Magazine cover. Wind Key 9-11 clicks as stated on the Magazine Cover.

WARNING: Do not wind more than the stated amount or after any rounds have been fired.

(4) To unload, hold Drum upside down and press bullets out forward one by one through the mouth of magazine until empty.

WARNING: Do not open cover when loaded and wound as damage may result.

(5) To load the L-Type Thompson Drum in your firearm, bolt must be locked back.

(6) Insert the Drum In the guide rails from the left side of the gun until magazine catch locks in place. The Drum may fit tightly the first few times.
