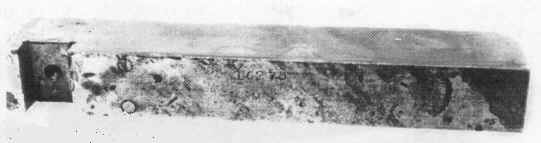

Bottom View of the anvil.
|
|
|

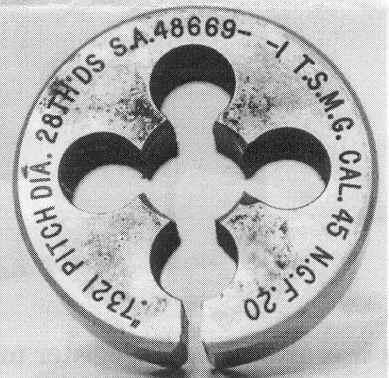

THE BARREL - Once a barrel blank was created it had to

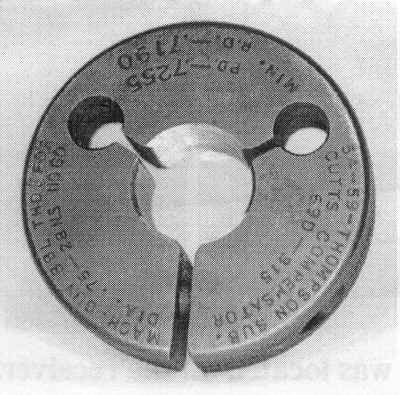

be threaded on both ends. The photo above left was used to cut threads on the barrel for
the compensator. The photo on the right shows the tap used to cut the receiver end
threads.
|

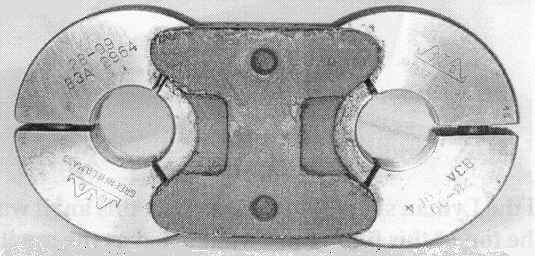

This gage was
used to inspect compensator threads on the barrel. |
|
